Inverter Magnet
The Inverter Magnet is an amazing new discovery that until recently only existed in science fiction! The magnet array creates a 'tractor beam' that holds the other magnet at a fixed distance. Just like Star Trek!

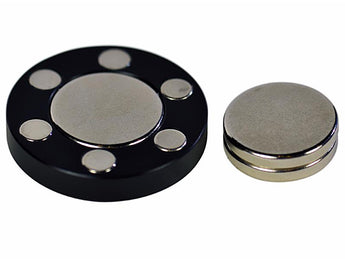

The main array consists of a circular plastic disc, that contains six small neodymium magnets arranged around the edge, and two larger neodymium magnets placed in the centre. These two central magnets are stacked one on top of the other. There is also a test magnet, which consists of another pair of circular magnets, identical to the ones in the centre of the array. The magnets are so arranged that the test magnet is attracted to the central magnet in the array, but repelled by the six small magnets around the edge. When you bring the test magnet towards the inverter magnet, initially it is attracted towards it. But then, when it gets close, it starts to be affected by the repulsive force from the small magnets.
What happens next is really unexpected. The test magnet stops short of the array, leaving an air gap between the two. If you then slide the array across the table, the test magnet will follow, locked in position, as if by an invisible connection. You can move either the inverter magnet, or the test magnet, and the other magnet will follow. Also, if you rotate the array, the test magnet will rotate, since it is held in a magnetic sweet spot, which occurs between two of the small magnets.
This item is supplied as a kit. No tools are needed for the assembly - everything is just a push fit. The kit contains the plastic ring, six small neodymium magnets, and four larger neodymium magnets. Full instructions are included, as well as some further experiments you can carry out. It is worth mentioning that the surface you place the magnets on should be fairly smooth, and if it contains metal parts, as some tables do, this can interfere with the attraction beween the magnets. Beam me up, Scotty!
The plastic ring has an outer diameter of 35mm. Supplied with 4 large magnets and 6 small magnets.
Full instructions included. No tools required
Neodymium magnets are brittle, and care should be taken not to allow them to hit each other too hard or they can break.
THIS IS NOT A TOY. Neodymium magnets are very dangerous if swallowed, and can lead to severe injury or even death.
Suggested Age 16+
See this item in action
